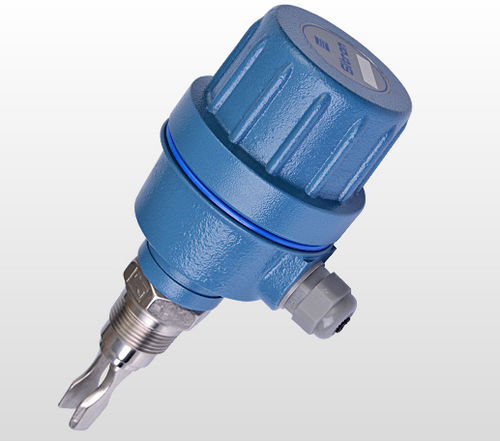

Vibrating level switch VTK - G1

for liquidssanitaryaluminum

The VTKR with a small robust aluminum housing (G1) comes standard with a universal power supply: 24Vdc or 85 to 264Vac. It is an ideal solution for point level detection of liquids, regardless of the conductivity or dielectric of the product. The G1 Aluminum housing can also be ordered with an acrylic window for active viewing of level status without having to remove the housing cover. All models are made in 316 Stainless Steel, can be ordered with a great variety of threaded, flange, or hygienic fittings, are available with Halar or epoxy coatings and can operate at temperatures up to 100ºC . The VTKR also features a time delay adjustment of 1, 5, 10 or 20 seconds as well as a Wet/Dry selection for both High and Low level application requirements. Application: Level Switch for Liquids Operating Voltage: 18...36 Vdc / 85...260 Vac (50/60Hz) Consumption: DC < 6mA / AC < 10mA Output: Relay (1x SPDT) Viscosity: 0.5...5000 cSt Accuracy: 0.1% Repeatability: < 0.5mm Delay: 1 to 20 segundos (adjustable) Set Point: 13mm from the tip Load current: 5A (250Vac) Enclosure: Aluminum Electrical Connections: ½” NPT, M12 connector or Cable Gland Process Connection: 3/4” to 1 ½” BSP, NPT , Sanitary or Flanged connection Body Material: 316 S.S High level alarm Low level alarm Pump protection Leak detection Overflow alarm Supply line control Fill/Drain control Lubricant monitoring Cooling water monitoring On/Off valve monitoring Oil level detection
