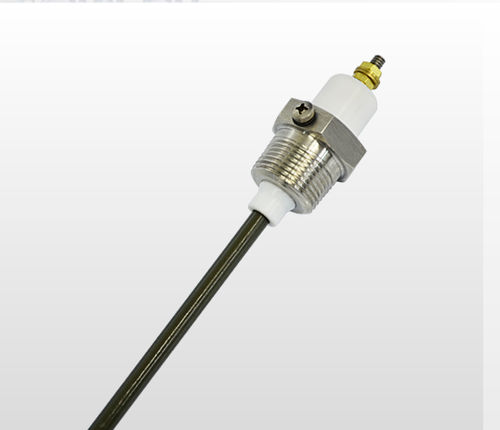

Conductive level switch EL TA01

for liquidssanitarystainless steel

The EL TA01 is a single point, fixed rod level switch with no housing and a screw terminal type electrical connection. The EL TA01 also requires separate panel mounted relays to control the process. Depending on the requirement, the customer can choose from either the BS/16, BS40, CN/16, CN73R or CN2R relays. Like all of Sitron’s products, the EL TA01 is configurable to accommodate a variety of threaded, flange, or sanitary process connections as well as Halar or other coating materials. For applications with heavy vapor, aggressive media or a product that tends to stick to or accumulate on the rods, Sitron recommends that the rods should be Halar coated. Application: Level Detection for Liquids Electrical Connection: Screw and Nut Process Connection: 1/2” to 1 ½” BSP or NPT Wetted Parts: Stainless Steel 316SS / Coating Material for agressive medium (optional) Operating Temperature: -10 to +80ºC Class Protection: IP40 High level alarm Low level alarm Pump protection Leak detection Overflow alarm Supply line control Fill/Drain control Cooling water monitoring On/Off valve monitoring
