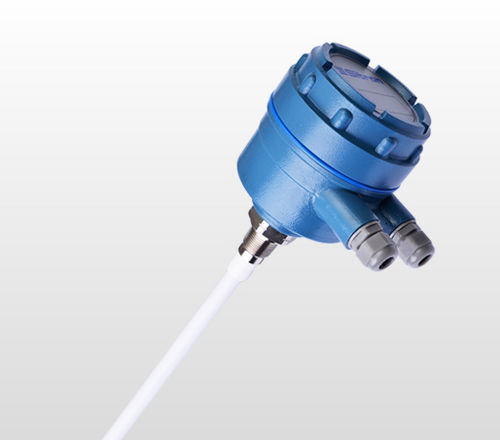

Capacitive level transmitter SC404

for liquidsfor solidsanalog

The SC404 is a capacitance continuous level transmitter with an integrated Galvanic Isolator and electronics module mounted within the Large aluminum housing. This 2 wire loop powered unit provides a 4-20mA output with set up and calibration achieved with a zero and span adjustment. This flexible level measurement device works well in many industrial processes and process media including a variety of liquids, powders and pastes. Optional Accessories: TR202 Relay Digital readout + 2X active relays/ 1X F.S. Relay + passive 4…20mA out Application: Level Measurement in Liquids & Solids Operating Voltage: 24Vdc(+/-10%) Consumption: 22mA max Adjustment: Zero & Span Sensitivity: 100 to 5500pF Oscilation Frequency: 400 kHz Output: 4...20mA (2 wires) Accuracy: max error 0.5% Repeatibility: +/- 1mm Electrical Connection (Cable entry): Cable Gland 1/2” NPT or M12 connector Process Connection: 3/4” to 1 1/2” BSP / NPT Flanged or Sanitary connection Wetted Parts: 316 SS, PTFE Coating Housing Material: Large Aluminum (G2) Boilers tank level monitoring Oil tank level monitoring Cosmetic packaging machinery Sanitary Process Level Measurement Food and Beverage applications Pulp and Paper Industry
