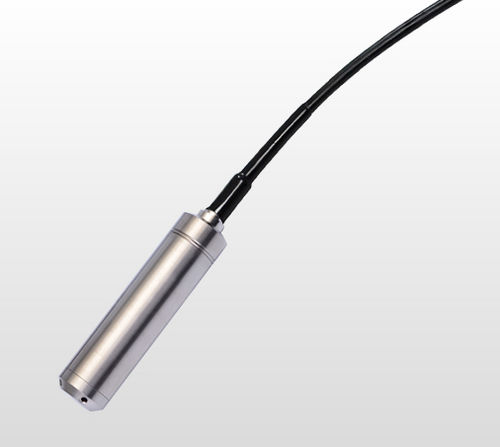

Relative pressure transmitter LH850atmosphericpiezoresistive4-20 mA
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative, atmospheric
- Technology
- piezoresistive
- Output
- 4-20 mA, HART
- Supply voltage
- 12 Vdc
- Mounting
- immersed
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Protection level
- IP68
- Applications
- process, for the food industry, for water treatment
- Other characteristics
- two-wire, sanitary
- Pressure range
Max.: 60 bar
(870.23 psi)Min.: 0 bar
(0 psi)- Precision
0.25 %, 0.5 %
- Process temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)
Description
The LH850 is an ideal pressure or level measurement solution for water or other liquids with low amounts of sediment. The LH840 features a 316SS piezoresistive sensor, 316SS body, a polythene vented cable.
Optional Accessories:
TR202 Relay Digital readout + 2X active relays/ 1X F.S. Relay + passive 4…20mA out
CH65 Weatherproof Termination Box – Provides atmospheric venting with terminals for non-vented cable out
Application: Level Measurement for Liquids
Operating Voltage: 12...30Vdc
Consumption: Max 22mA
Output Signal: 4...20mA (2 wires) + HART protocol
Sensor: 316S.S Piezoresistive Silicone filled
Electrical Connection: Armored Polyethylene cable with Polyurethane Vent Tube.
Body Material: 316 Stainless Stel
Protection: Polarity inversion and Power surges
Water and Waste Water Utilities
Sump or River Level Monitoring
Sanitary Process Level Measurement
Food and Beverage applications
Pulp and Paper Industry
