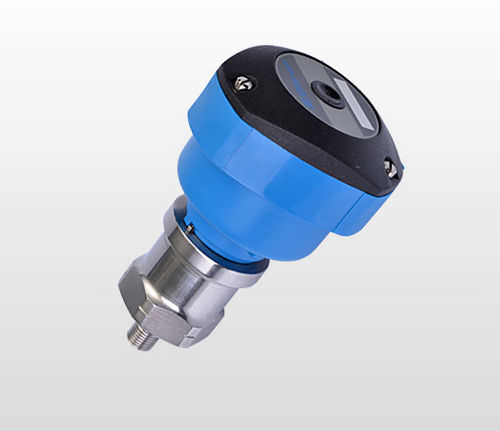

Relative pressure transmitter SP96FAceramicpiezoresistive4-20 mA
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- ceramic, piezoresistive
- Output
- 4-20 mA, HART
- Supply voltage
- 12 Vdc
- Mounting
- threaded
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Protection level
- IP65
- Applications
- for HVAC systems, for marine applications, for refrigeration circuits, for boiler, for railway applications
- Other characteristics
- compact, sanitary
- Pressure range
Max.: 200 bar
(2,900.75 psi)Min.: -1 bar
(-14.5 psi)- Precision
0.5 %
- Long-term stability
0.2 %
- Process temperature
Max.: 70 °C
(158 °F)Min.: -10 °C
(14 °F)
Description
The SP96FA features a Zero and Span adjustment housed within the nylon enclosure, a 316SS body, 316SS piezoresistive sensor, pressure ranges from -1…200bar and optional HART protocol. Optional Accessories:
TR202 Relay Digital readout + 2X active relays/ 1X F.S. Relay + passive 4…20mA out
Application: Pressure and Level Measurement in Liquids and Gas
Consumption: 22mA Max
Output: 4...20mA (2 wires)
Adjust: Zero & Span
Sensor: 316 S.S Piezoresistive Sensor / Olive oil for Sanitary
application
Wetted Parts: 316 S.S
Enclosure: Nylon
Electrical Connection: Cable Gland 1/2" NPT or M12 Connector
Process Connection: BSP/ NPT , Flange or Sanitary
Operating Temperature / Compensated: -10 to+70°C (typical), 0 to+60°C ( 1 Bar) / 0.04% F.S./°C <1 Bar)
Over Pressure: 3x F.S
General applications
Compressors and Pumps
Sanitary process and control
Refrigeration, HVAC and boilers
Industrial hydraulic machinery
Transportation, marine, rail equipment
