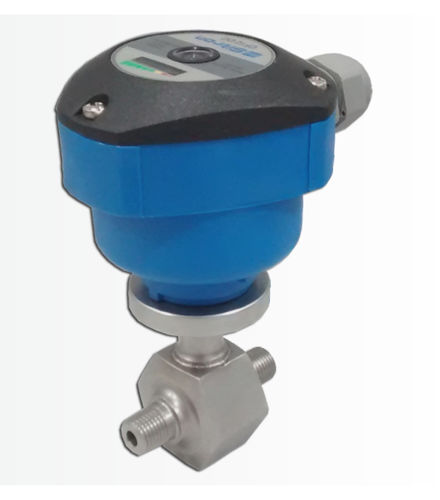

Thermal flow switch CF12

for liquidsstainless steelaluminum

The CF12 series of thermal flow switches is designed to monitor flow status of liquids and gases and can also be used to detect level. A chain of 8 LED’s gives the user a visual indication of the flow status of the switch. There are two red LEDs that indicate whether or not the unit has detected flow, a yellow LED to indicate the set point (for increasing or decreasing flows) and 5 green LEDs that indicate the amount of flow beyond the set point of the unit. The CF12 also includes a di-chromatic (red/green) LED which shows the switch point status of the unit. The sensing element and connection of the CF12 are made with 316L S.S. and can be coated when necessary . The enclosure is offered in either glass filled nylon or aluminum. All models can be ordered with a great variety of threaded, flange, or sanitary process connections. With the addition of a built in “T-Reducer” connection, the CF12 is now able to detect flow rates between 3ml and 300ml per minute. - Ideal for various industrial environments applications. - Robust with no moving parts and easy maintenance. Corrosion resistant 316 Stainless Steel Body - Class Protection IP65 to IP67 (IEC 60529). - Fast response time for flow - Set-Point Range. - 3ml/m to 300ml/m (Liquids)- Relay SPDT Output. - Protection: - Reverse polarity - Voltage surges - Electromagnetic interference
