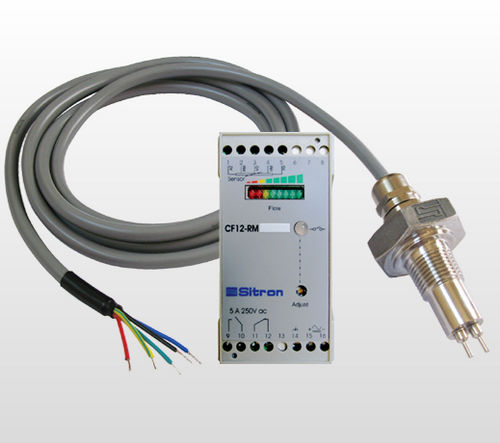

Thermal dispersion flow switch CF12RM

for liquidsfor gasstainless steel

The CF12RM Remote Mounted Thermal Dispersion Flow Switch is available in two versions: CF12RMDC (+/-24Vdc) or CF12RMAC (85 to 264Vac). Both of these models offer reliable liquid and gas flow detection ideally suited for just about any Flow/ No Flow application, with the flexibility of separate panel mountable relay controller. This model is often an ideal solution when the point of installation is a very confined space or where the user prefers panel mounted electronics. Like all of Sitron’s products, the CF12 can be configured to accommodate our customer’s unique process control requirements. All models can be ordered with a great variety of threaded, flange, or sanitary process connections as well as Halar or epoxy coating for aggressive mediums. While the CF12RM is designed to monitor flow status of liquids and gases, with its no moving parts technology it can also be an ideal solution for liquid level detection. Application: Flow detection for liquids and gas / Level detection for liquids Operating Voltage: CF12RM AC: 85-240Vac (50/60hz) 125Vdc ou CF12RM DC: 24Vdc (+/-10%) Current Consumption: +/- 100mA Output: Relay (NA + NF) 5A - 250Vac Set Point Range: Liquid: 3 cm/s to 3 m/s - Gas: 5 cm/s to 5 m/s Accuracy: +/- 10% Repeatability: +/- 1% setpoint Response Time: 1 to 10 seconds Gradient Temperature: 15ºC/min Flow Rate Indication: Red led - flow is below setpoint/ Yellow led - Flow is at setpoint / Green led - Flow is above setpoint Enclosure Material: Without Enclousure (standard) or nylon (optional) / Controller: ABS Electrical Connection: M12 Quick Connector or Fixed Cable with metal Cable Gland
