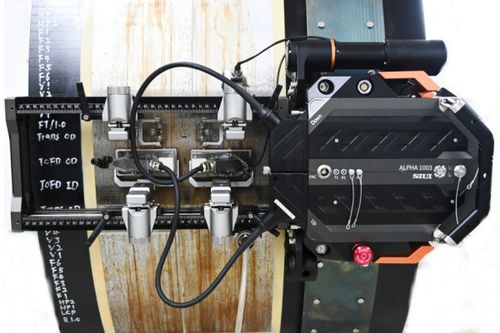

Ultrasonic inspection crawler ALPHA 1003

for pipes

Automated Ultrasonic Testing Zone Discrimination Inspection Integrated System Cable-free Scanning ● Suitable for pipe diameter≥500mm(19.7in.), with recommended thickness≥6mm(0.25in.) ● Suitable for compound U/ V and U weld groove, especially for automatic welding detection. ● Easy carrying, only 15kg for crawler. ● Integrated ultrasonic module for cable-free scanning. ● Supports wireless data acquisition in real-time for the whole scanning process. ● Wheels with groove design keeps crawler scanning on a straight line, with the offset ≤1mm from the center of the weld to the probe flank. Zone Discrimination Inspection Technique: The AUT probe can emit thousands of focusing laws, adopts the partition method, used for testing surface defects and hidden defects in girth welds of long-distance pipeline. No blind zone of ultrasonic testing.
