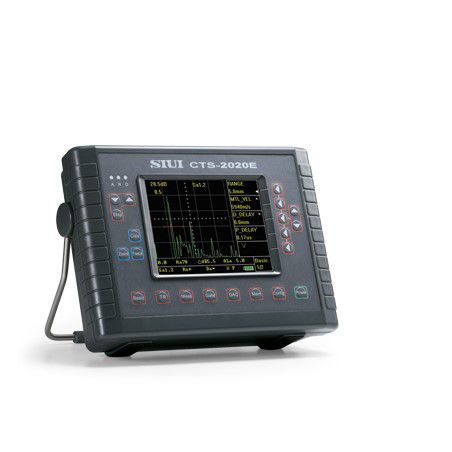

Ultrasonic flaw detector CTS-2020E

portabledigital

High limit Sensitivity Compact & Handy Easy Operation Low Noise The digital ultrasonic flaw detector CTS-2020E is suitable for various detection demands, such as forged pieces, welding lines, steel structural parts and airplane parts. • Max. sampling rate 240MHz; Measurement resolution 0.1mm; Min. display range 5mm. • Operating frequency range: 0.5~10MHz, at least 62dB detection sensitivity surplus,highlighting advantages of high sensitivity and broadband. • USB port for saving system stored data and data waveforms to a USB disk,as well as easy printing detection reports. • Variable PRF: avoid reverberation signals during flaw detection. • Interface wave tracking function: Immersion detection or precision measurement can be easily achieved through the logic relation between gate A and B. • Peak value memory function: for quick scanning and measuring workpieces. • Complete DAC curve function: convenient for echo evaluation. • Probe angle (K value) measuring function. • Large memory for saving up to 500 data sets, including wave forms, curves,parameters,detection reports, etc. • High-brightness color TFT LCD, bringing optimized effect for reading measurement. • 10 waveform and character colors are available for selection. • Large capacity lithium battery pack for continuous operation over 6 hours.
