Advanced tool allowing belt pulley and chain drive alignment

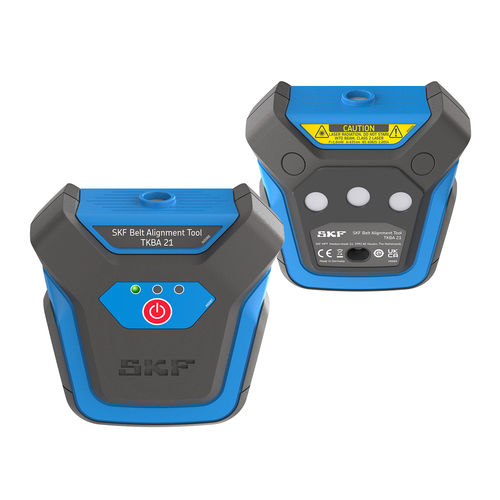

The tool has two components: a laser-transmitting unit and a receiver unit. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKBA 21 can be applied to most machines that use V belts, banded belts and ribbed belts – as well as those with chain sprockets. A laser line is projected from the transmitter to the receiver – which is mounted on the opposite pulley. The tool then corrects for vertical angle, horizontal angle and parallel misalignment – including combinations of all three.
• Two laser transmitter/receiver units
• Uses red laser diodes and can be used for distances up to 3 m (10 ft).
• Fast, easy attachment – using powerful magnets
• Simplified alignment process
• Simultaneous adjustment of tension and alignment
• Applicable to most machines using V belts, banded belts, ribbed belts – as well as chain sprockets
