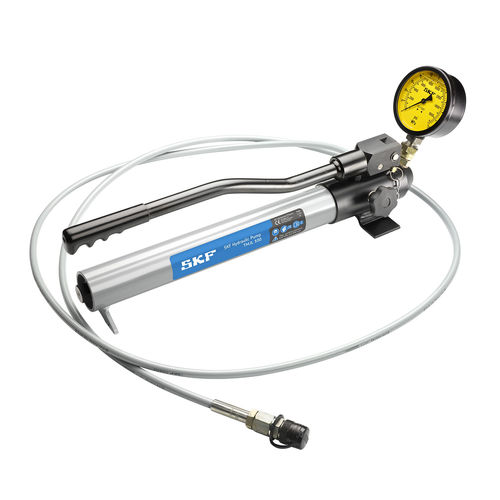

Hydraulic piston pump TMJL 100
leverfor hydraulic nutsfor lubrication

Hydraulic piston pump - TMJL 100  - SKF Maintenance,Lubrication and Power Transmission - lever / for hydraulic nuts / for lubrication
Hydraulic piston pump - TMJL 100  - SKF Maintenance,Lubrication and Power Transmission - lever / for hydraulic nuts / for lubrication
Add to favorites
Compare this product


Characteristics

Type
piston
Operation
lever
Applications
for hydraulic nuts, for lubrication
Other characteristics
high-pressure, oil, hand-held, transportable, with tank, with pressure controller
Pressure

Max.: 100 MPa

Min.: 0 MPa

Weight

13 kg
(28.66 lb)

Description

Hydraulic pump 100 MPa (14 500 psi) with large oil container The TMJL 100 pump is suitable for use with hydraulic nuts (smaller than or equal to HMV 92E) and for mounting and dismounting bearings or components where a maximum pressure of 100 MPa (14 500 psi) is required. The pump is supplied with 3 000 mm (118 in) pressure hose, quick connect coupling and mating nipple, and pressure gauge. The pump is filled with SKF Mounting fluid LHMF 300 and is supplied with an extra litre of fluid. Special execution TMJL 100DU TMJL 100 including THGD 100 digital pressure gauge for use with the SKF Drive-up Method. * Oil container capacity 800 cm³ (48 in.³) * Fitted with a pressure gauge * Packed in a sturdy protective case Applications * SKF hydraulic nuts smaller than or equal to HMV 92E * Oil injection applications where the maximum pressure is 100 MPa (14 500 psi) vSuitable with SKF hydraulic assisted pullers TMHP series
