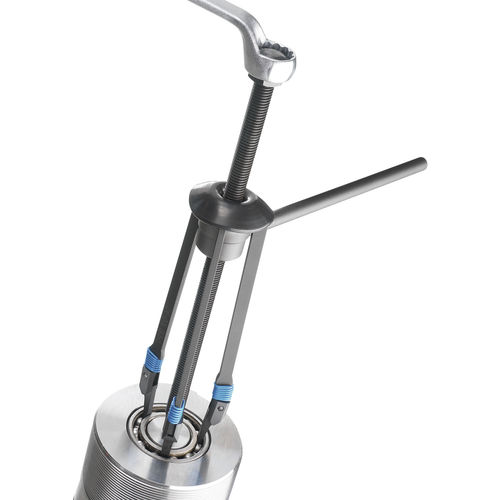

Mechanical bearing puller TMMD 100

three-arm

Deep groove ball bearing puller kit Easy dismounting of bearings in blind housings The puller is suitable for use in both blind housings and shaft applications. The SKF TMMD 100 is suitable for dismounting up to 71 different SKF deep groove ball bearings, with shaft diameters ranging between 10 and 100 mm (0.4–3.9 in.). • The claws are designed to precisely fit in the bearing’s raceway, providing a good grip, thereby allowing high dismounting forces • Each puller arm is fitted with a spring for easy installation • The claw has been designed to allow easy insertion • The hexagon head of the spindle is designed to prevent the spanner sliding down the spindle during dismounting • The puller can also be used to remove sealed bearings from blind housings, after the seal has been removed • Supplied in a sturdy carrying case
