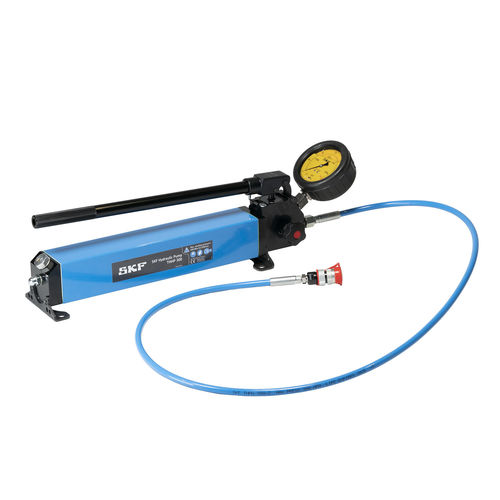

Oil hydraulic pump THHP 300

pistonleverfor industrial applications

Hydraulic pump 300 MPa (43 500 psi) Easy-to-connect manual hydraulic pump develops oil pressures up to 300 MPa (43 500 psi) The THHP 300 is a high pressure, hand-operated hydraulic pump that is suitable for many applications using the SKF Oil Injection Method, for oil pressures up to 300 MPa (43 500 psi). It can be used straight from the case: mount the appropriate THPN nipple on the application and then screw on the quick connection nipple. Connecting the hose to the nipple on the application enables a supply of high pressure oil. The two stage pump includes a 0-300 MPa (0-43 500 psi) pressure gauge, high pressure hose and quick connection coupling. Connection nipples enable both G1/4 and G3/4 connections. * Two stage pump design to quickly reach high pressures up to 300 MPa (43 500 psi) * Large, mounted gauge shows pressures over the full pressure range * Glycerine filled pressure gauge dampens shocks and pressure peaks, giving longer service life and is easier to read * Easy to use – it comes with a high-pressure hose, a quick connection coupling is included and various nipples to connect to the most common applications * Applicable in wide range of industries including rail and marine * Design minimises the risk of oil leaking into the environment * Packed in a sturdy protective case
