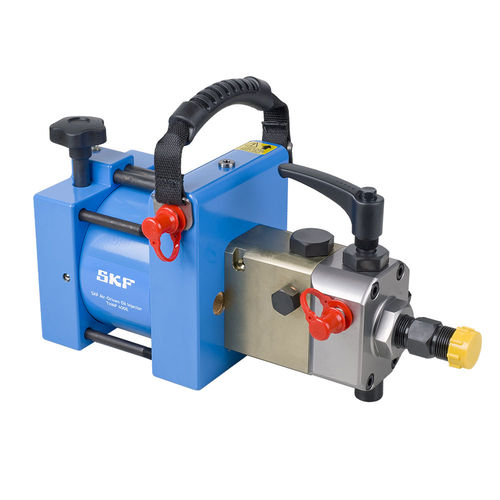

Air-driven pneumo-hydraulic unit THAP series

for bearingsfor vehicleswheel

Air-driven pumps and injectors 30 to 400 MPa (4 350 to 58 000 psi) The THAP E air-driven pumps and oil injectors are available in four different pressure versions. They are used for mounting and dismounting OK couplings, for dismounting large pressure joints such as bearings, flywheels, couplings, railway wheels and in many similar applications. The pumps consist of a high pressure hydraulic pump, driven by an air piston. The units are supplied in a sturdy case including oil suction and return hoses with quick connect couplings. The air driven pumps can also be supplied in complete sets which consists of pump, pressure gauge, high pressure hose, quick connection coupling and nipple and thread adapter nipples to suit the application. Features & benefits • Time savings compared to hand operated pumps • Portable • Continuous supply of oil • Internal air pressure limiter helps ensure safe operation • Low air consumption • Wide operating temperature range • Sturdy storage boxes • Low, medium and high pressure units • Easy to connect to the application Applications • Mounting bearings • SKF OK-Couplings • Mounting ship propellers, rudder pintles, railway wheels and other similar applications
