Lip seal HDW1 circularsteelnitrile rubber
Add to favorites
Compare this product
Characteristics
- Type
- lip
- Configuration
- circular
- Material
- steel, nitrile rubber, carbon, coating
- Application
- metal, shaft
- Other characteristics
- dynamic, static, spring
- Diameter
Min.: 4.775 mm
(0.188 in)Max.: 500 mm
(19.685 in)- Outer diameter
Min.: 12 mm
(0.472 in)Max.: 540 mm
(21.26 in)
Description

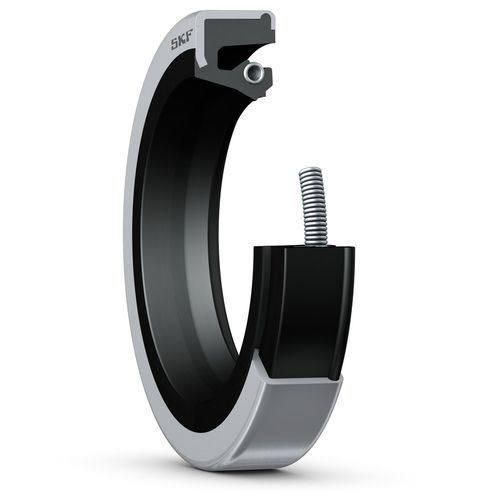

HDW1 (fig 1) seals are heavy-duty SKF WAVE lip seals, designed for use in grease or oil lubricated applications. The seals are produced standard with a heavy-duty seal body, SKF Bore Tite Coating on the metal outside diameter, SKF WAVE lip in nitrile rubber, and a carbon steel garter spring.
The rigid seal body can withstand operating pressures up to 0,24 MPa (35 psi), dynamic, and 0,34 MPa (50 psi), static, while withstanding shaft speeds up to 25 m/s (4 900 ft/min) at shaft diameters < 203 mm (8 in.).
