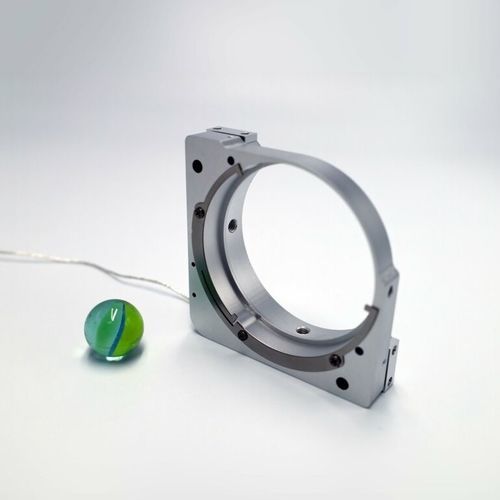

Motorized mirror holder STT-50.8

for mountingaluminumtitanium

The STT-50.8 accepts 2 inch mirrors, lenses or other optical components. The motorized mirror mount STT-50.8 can be seen as the motorized counterpart of classical kinematic mounts for mirrors, lenses or other optical components. It can be equipped with position sensors allowing to monitor and control the alignment process of the optical component in closed-loop. Due to their overall compactness the position sensors are mounted outside the housing slightly enlarging their outer dimensions. For special applications it is also available in a clear edge design with an open frame structure for mounting of the optical components. Mechanical Dimensions [mm] - 61 x 61 x 18 Weight [g] - 30 Mirror Diameter [inch] - 2 Tip Angles [ - ± 1; ± 1 (I) Tilt Angles [ - ± 1; ± 1 (I) Open-loop Angular Velocity [°/s] - 15 Closed-Loop Closed-Loop Resolution [µ - 100 (I) Closed-Loop Repeatability [µ - ± 10000 (I) Options Mechanical Options - Clear Edge (-CE) Vacuum Options - HV (1E-6 mbar); UHV / UHVT (1E-11 mbar) Non-Magnetic Option - Yes (-NM)
