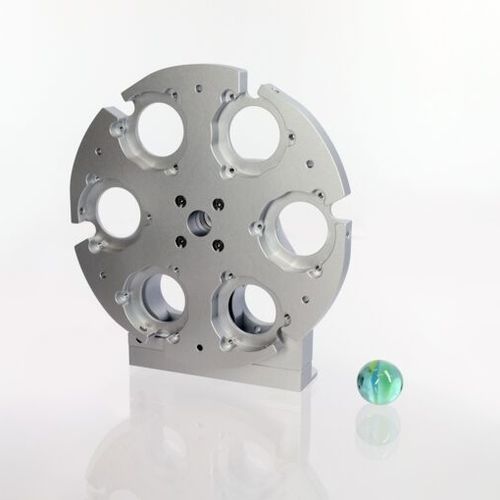

Motorized optical filter wheel SFW-6-25.4

for filters

A filter wheel for up to 6 filters with a diameter of 1 inches each. SmarAct motorized filter wheels are the ideal solution for optical setups that require frequent and automated change of optical filters. The filter wheels are available in different designs for different number of filters and different filter sizes of 0.5, 1, 1.5 and 2 inches. Closed-loop controlled and high vacuum versions are available as well as filter wheels made of different materials like aluminum, steel or titanium. Our application scientist are eager to help you in selecting the perfect configuration or to discuss possible customizations. Mechanical Filter Size [inch] - 1 Filter Number - 6 Dimensions [mm] - 105 x 35 x 113 Weight [g] - 260 Closed-Loop Closed-Loop Resolution MCS2 [µ - 15 (S); 60 (L) Closed-Loop Resolution (H)CU [µ - 1000 (L) Closed-Loop Resolution [µ - 15 (S); 60 (L) Options Material Options - Black anodized (-BK), Titanium base (-TI), Steel base (-ST) Vacuum Options - HV (1E-6 mbar)
