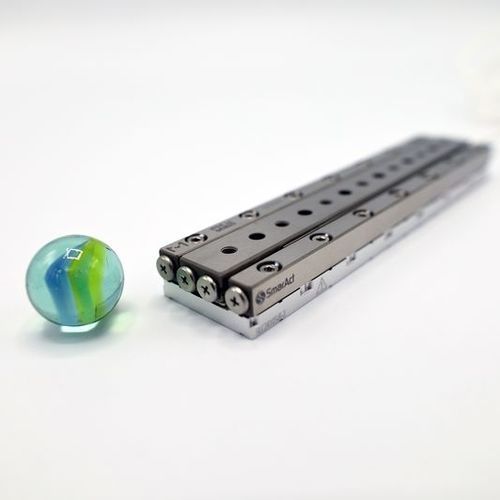

Linear stage SLC-24105

piezo1-axishigh-accuracy

Measuring 105 x 24 x 10.5 mm, the SLC-24105 offers a travel range of 69 mm and a normal force of 30 N. Please note that the downloadable documents for this linear piezo stage show the dimensions and specifications of an SLC-24105 for atmospheric or HV environments, equipped with an S-position sensor. For technical drawings and detailed specifications of other variants, such as UHV compatible stages, stages with higher blocking force or other sensor options, please contact our sales team. Mechanical Blocking Force [N]≥ 3.5 Max. Normal Force [N]30 Max. Lift Force [N]1.5 Dimensions [mm]105 x 24 x 10.5 Weight [g]126 Open-loop Resolution [nm]< 1 Options Material Options Aluminum base as standard; Steel base (-ST); Titanium base (-TI); Black anodized (-BK) Mechanical Options U-shaped base for higher stiffness (-W) increases width to 30 mm Performance Options Higher blocking force (-D): +1.5 N Cryogenic Option--
