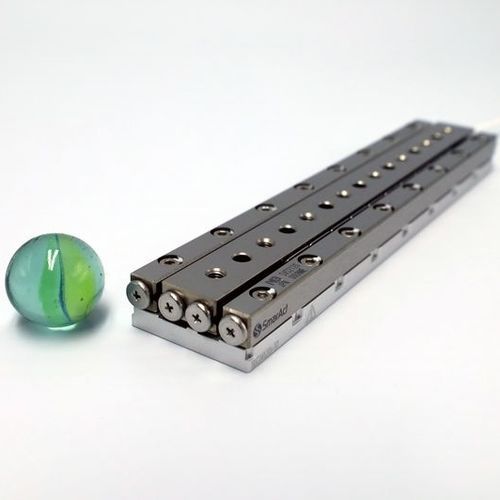

The SLC-24120 features a travel range of 83 mm and a normal force of 30 N with dimensions of 120 x 24 x 10.5 mm.
Please note that the downloadable documents for this linear piezo stage show the dimensions and specifications of an SLC-24120 for atmospheric or HV environments, equipped with an S-position sensor. For technical drawings and detailed specifications of other variants, such as UHV compatible stages, stages with higher blocking force or other sensor options, please contact our sales team.
Mechanical
Blocking Force [N]≥ 3.5
Max. Normal Force [N]30
Max. Lift Force [N]1.5
Dimensions [mm]120 x 24 x 10.5
Weight [g]144
Open-loop
Resolution [nm]< 1
Options
Material Options Aluminum base as standard; Steel base (-ST); Titanium base (-TI); Black anodized (-BK)
Mechanical Options U-shaped base for higher stiffness (-W) increases width to 30 mm
Performance Options Higher blocking force (-D): +1.5 N
Cryogenic Option--
