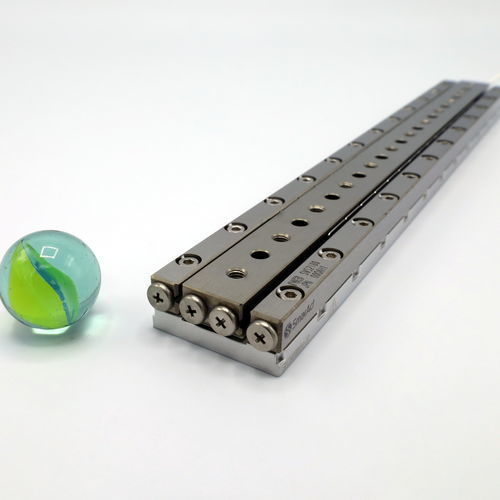

Linear stage SLC-24180

piezo1-axishigh-accuracy

The SLC-24180 provides the longest travel range within the SLC-24 series at 123 mm. It measures 180 x 24 x 10.5 mm and offers a normal force of 30 N. Please note that the downloadable documents for this linear piezo stage show the dimensions and specifications of an SLC-24180 for atmospheric or HV environments, equipped with an S-position sensor. For technical drawings and detailed specifications of other variants, such as UHV compatible stages, stages with higher blocking force or other sensor options, please contact our sales team. Mechanical Blocking Force [N]≥ 3.5 Max. Normal Force [N]30 Max. Lift Force [N]1.5 Dimensions [mm]180 x 24 x 10.5 Weight [g]216 Open-loop Resolution [nm]< 1 Options Material Options Aluminum base as standard; Steel base (-ST); Titanium base (-TI); Black anodized (-BK) Mechanical Options U-shaped base for higher stiffness (-W) increases width to 30 mm Performance Options Higher blocking force (-D): +1.5 N Cryogenic Option--
