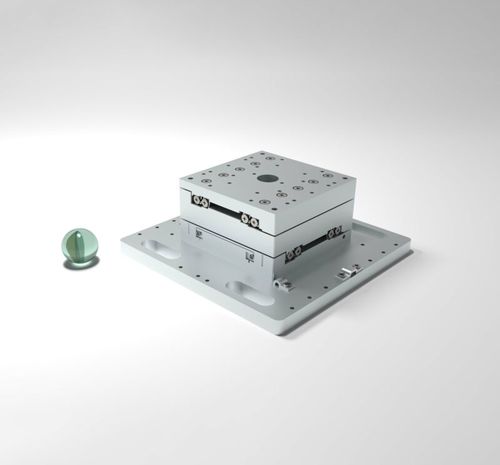

Linear stage XY-CLS52:52

2-axisclosed-loopmodular

Based on two CLS-5252 linear stages with a travel range of 31 mm each, the system is able to handle payloads of up to 20 N and is fully compatible to the SmarAct Modular System. Mechanical Stages used - CLS-5252 Payload [N] - 20 Breadboard Mount Dimensions [mm] - 90 x 90 x 34 (L x W x H) Height of Platform above Ground [mm] - 34 Direct Mount Dimensions [mm] - 52 x 52 x 28 (L x W x H) Height of Platform above Ground [mm] - 28 Within the scope of SmarAct’s modular system, fully pre-built and pre-configured positioning systems are available. These pre-defined positioning systems are customer inspired and represent the systems and platforms most commonly requested by our customers. The systems are very versatile and can be used for a wide range of positioning tasks. In the following, the systems are displayed including a breadboard adapter. All systems are also available without the breadboard adapter if a direct mounting method is preferred. On the basis of these pre-defined systems, and in combination with customized connection elements and customized stages, very complex serial positioning systems can be realized. Some of them are presented on the following pages. If your application requires a special configuration that is not shown in the following, please do not hesitate to contact our application specialists to discuss your application’s requirements.
