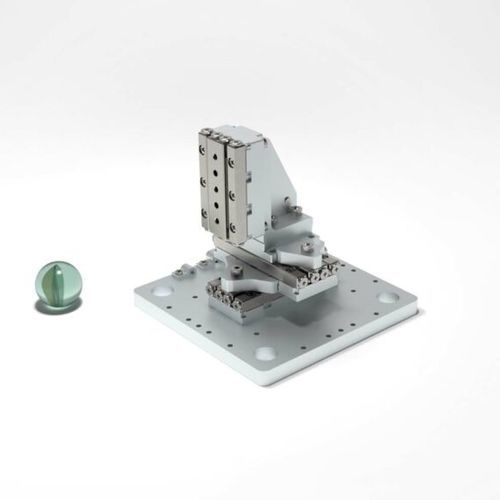

XYZ stage XYZ-XY SLC17:40 Z SLC17:30

3-axisclosed-loopmodular

Based on two SLC-1740 stages for X and Y with 26 mm travel range and one SLC-1730 with 21 mm travel range for Z. The system is able to handle payloads of up to 1.5 N. Mechanical Stages used - SLC-1740 (X, Y); SLC-1730 (Z) Payload [N] - 1.5 Breadboard Mount Dimensions [mm] - 65 x 65 x 62 (L x W x H) Center of vert. Stage above Ground [mm] - 47 (36.5 ... 57.5) Direct Mount Dimensions [mm] - 42 x 40 x 57 (L x W x H) Center of vert. Stage above Ground [mm] - 42 (31.5 ... 52.5) Within the scope of SmarAct’s modular system, fully pre-built and pre-configured positioning systems are available. These pre-defined positioning systems are customer inspired and represent the systems and platforms most commonly requested by our customers. The systems are very versatile and can be used for a wide range of positioning tasks. In the following, the systems are displayed including a breadboard adapter. All systems are also available without the breadboard adapter if a direct mounting method is preferred. On the basis of these pre-defined systems, and in combination with customized connection elements and customized stages, very complex serial positioning systems can be realized. Some of them are presented on the following pages. If your application requires a special configuration that is not shown in the following, please do not hesitate to contact our application specialists to discuss your application’s requirements.
