Long-travel stage CLL42linearpiezo1-axis
Add to favorites
Compare this product
Characteristics
- Orientation
- linear
- Type
- piezo
- Number of axes
- 1-axis
- Other characteristics
- vacuum-compatible, closed-loop, long-travel
- Stroke
Min.: 160 mm
(6.299 in)Max.: 680 mm
(26.772 in)- Speed
15 mm/s
- Repeatability
100 nm
Description

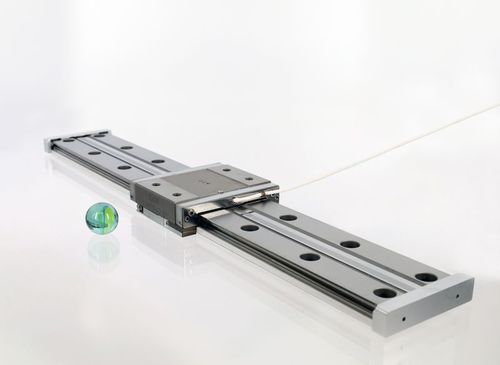

The CLL42 offers a large platform to mount the payload and features a travel range of up to 619 mm.
The CLL42 is equipped with SmarActs exchangeable drive units which guarantees easy access to the stage's core component, the piezo-drive. That makes servicing a very simple task. It is also available in a high vacuum version. The standard versions offer travels of 99, 179, 259 and 379 mm. Special lengths are of course available on request.
Mechanical
Blocking Force [N] - ≥ 5
Max. Normal Force [N] - 30
Max. Lift Force [N] - 1.5
Dimensions [mm] - 60 x 16 (open-loop carriage)
Weight [g] - Length-dependen
Open-loop
Resolution [nm] - < 1
S)
Options
Material Options - Multiple carriages; Counterbores; Tapped holes (M4)
