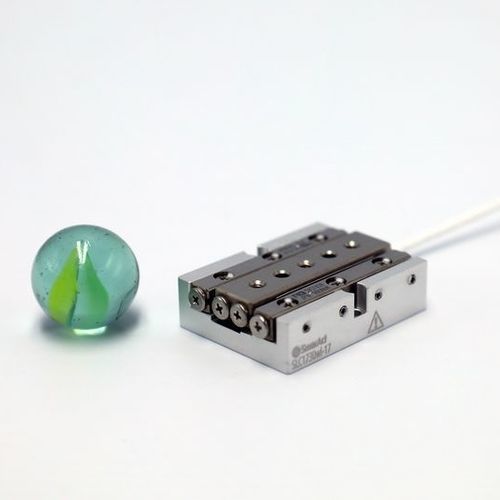

Linear mini nanopositioning stage SLC-1730

piezoclosed-loopprecision

With dimensions of 30 x 17 x 8.5 mm, this small nanometer precision linear stage SLC-1730 offers a travel range of 21 mm and a normal load of 20 N. Please note that the downloadable documents for this linear piezo stage show the dimensions and specifications of a 1730 for atmospheric or HV environments, equipped with an S-position sensor. For technical drawings and detailed specifications of other variants, such as UHV compatible stages, stages with higher blocking force or other sensor options, please contact our sales team. Mechanical Scan Range [µm] - > 1.3 Blocking Force [N] - ≥ 3.5 Max. Normal Force [N] - 20 Max. Lift Force [N] - > 1.5 Dimensions [mm] - 30 x 17 x 8.5 Weight [g] - 20 Open-loop Open-Loop Resolution MCS2 [nm] - < 1 Open-Loop Resolution (H)CU [nm] - < 50 Options Material Options - Aluminum base as standard; Steel base (-ST); Titanium base (-TI); Black anodized (-BK) Mechanical Options - U-shaped base for higher mechanical strength (-W) increases width to 23 mm; increased lifetime (-Z) Performance Options - Higher blocking force (-D): +1.5 N Cryogenic Option - Yes (only open-loop)
