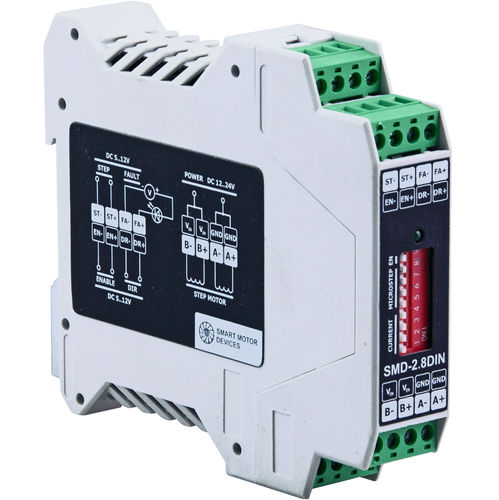

Microstepping motor controller SMD-2.8DIN

DCtwo-phase stepperdigital

SMD-2.8DIN is stepper driver for small and medium size stepper motors with current per phase up to 2.8 A. Driver provide smooth operation, maximum microstepping devision is 1/256. Standard logic signals STEP and DIR are used for motion control. Enable signal is also provided and it can be inverted if it is required by a system. Driver SMD-2.8DIN operate with external logic signals source – frequency generator, PLC and etc. The drivers are designed on a modern element base with the use of new engineering solutions, which allow to achieve high speeds while maintaining useful torque. The microstepping division up to 1/256 provides exceptional smoothness and accuracy of positioning, and the output signal FAULT allows monitoring emergency situations that can arise during operation. Additionally, SMD-2.8DIN have the STO function (Safe Torque Off) - which provides motor phases deenergizing in case of any alarm situation. The main parameters of stepmotor drivers SMD-2.8DIN Microstepping mode - 1/1, 1/2, 1/4, 1/8, 1/16 1/32, 1/64, 1/128, 1/256
