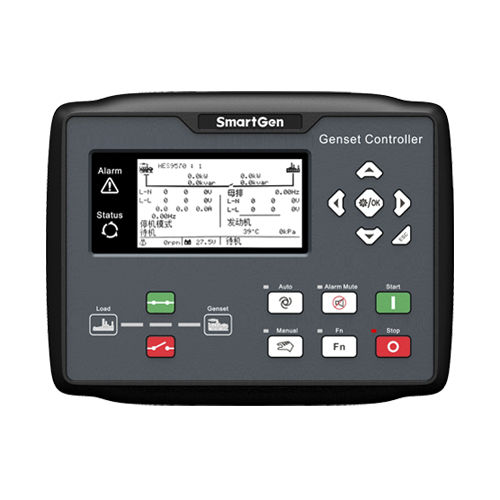

Parallel genset controller HES9570

hybrid energy genset parallel controller is designed for micro-grid system composing of solar energy, energy storage battery and genset, which suits for the grid-connection of single genset and new energy system, to realize genset auto start/stop, parallel running, data measurement, alarm protection and “three remote” (remote control, remote measurement, remote communication). It fits with large LCD display, optional Chinese, English and other languages interface, and it is easy to operate and reliable to run. HES9570 hybrid energy genset parallel controller has GOV and AVR control function, which can synchronize and share load automatically to parallel with PCS (VSG mode). Controller can precisely monitor all running status of gensets, and when abnormal occasions occur, gensets can parallel off from the bus and stop, meanwhile, fault status will be displayed on the LCD. Controller has SAE J1939 port, and can communicate with various ECU (Engine Control Unit) with J1939. HES9570 hybrid energy genset parallel controller controls genset to work in droop mode and charges for storage battery pack by controlling output power. It can be widely used in micro-grid systems composing of various genset and new energy with compact structure, simple connections and high reliability. PERFORMANCE AND CHARACTERISTICS With ARM-based 32-bit SCM, high integration of hardware and high reliability; 240x128 LCD with backlight, multilingual interface (including English, Chinese or other languages) which can be chosen on site, making commissioning convenience for factory personnel; Improved wear-resistance and scratch resistance due to hard screen acrylic; Silicon panel
