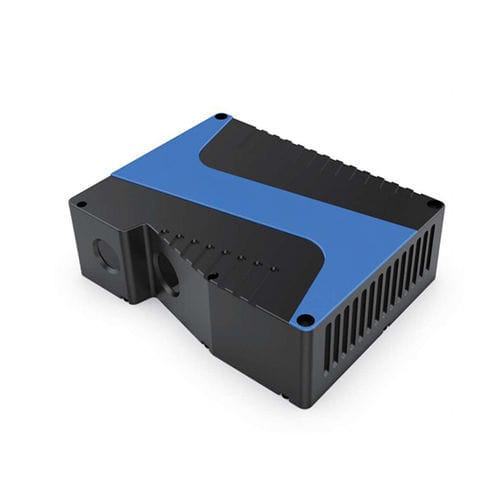

Industrial camera system SMI-3DSL-3000-01

3Dmeasuringfull-color

◆High frame rate: 3fps; ◆Ultra high precision: the highest repeatability of Z axis can reach 1um; ◆3D point cloud preprocessing: with multiple user-settable point cloud filtering functions; ◆Support CUDA calculation acceleration: faster point cloud reconstruction speed; ◆Various specifications for different environments: large field of view, high precision, small field of view, ultra-high precision ◆Flexible response to a variety of scenarios; ◆Industrial-grade protection: The aluminum alloy is integrally formed, so it is not afraid of the harsh industrial application environment. Camera Pixels: - 2.3 million Frame rate (scanning speed) (fps): - 3 Field of View (FOV) (mm): - 40x30 Installation distance (mm): - 122 Z-axis repeatability (um): - 1 Z-axis measurement range (mm): - soil 8 light source: - blue LED Size(mm): - 180x138x57 Weight (kg): - 1.4 IP rating: - IP54 Data interface: - GigE Scanning software: - SDK or TripleNano scanning software Software Development Kit: - YES Software development platform: - C, C++, NET Example: - Provides open source routines and use cases Working voltage (V): - 12 Power consumption (w): - <15 Working temperature (℃): - 0~40 Working humidity(%): - 20-90RH (no condensation) 1/0: - 1 way TTL Standard accessories: - 3m/5m USB cable, 3m/5m non-network cable, 3mlO full cable
