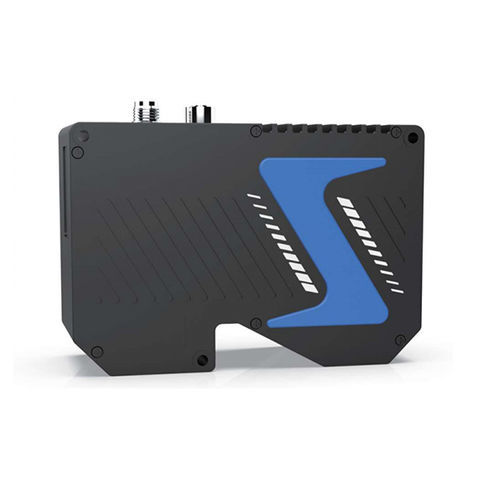

Industrial camera system SMI-3DBL-400-02

for scientific applicationsfor the automotive industrymachine vision

SMore 3D camera （SMI-3DBL-400-02）,it is a professional product for 3D positioning guidance and 3D measurement, and it has high precision and is also an industrial aluminum alloy shell. It is integrally formed and can meet various harsh working conditions. Product Features ◆Out-of-the-box: Pre-calibrated before leaving the factory, the calibration file is burned in the camera, and out-of-the-box; ◆High speed: scanning speed 500~4000Hz; ◆Real-time performance: Built-in FPGA preprocessing, can transmit the center of gravity data in real time; ◆Industrial-grade protection: Industrial aluminum alloy shell, one-piece molding, can meet various harsh working conditions and environments; ◆High precision: Z-axis repeatability can reach up to 02um, which can detect various micron-level high-precision parts. Specification Each contour contains the number of data points: - 1920 Z-direction linearity (%ofMR): - ±0.05% Z-axis repeatability (um): - 0.8 Benchmark distance (mm): - 113 Measuring range MR(mm): - 93 FOV(mm): - 60.5~98 Interval X-axis (um): - / Scanning speed (Hz): - 500~4000 Scanning software: - TripleLaser Scanning Software Measurement software: - GIVS 3D Software development kits: - Point cloud library, SDK Development Platform: - C, C++, .net Camera storage space: - Store calibration files, camera parameter files laser： - light source: - blue semiconductor laser Wavelength (nm): - 405 grade: - CLASS II power supply: - DC24V 1/0 interface: - 1 channel trigger input interface, 1 channel digital output interface, 1 channel analog output interface, 1 channel differential encoder input, 1 channel RS232 serial port
