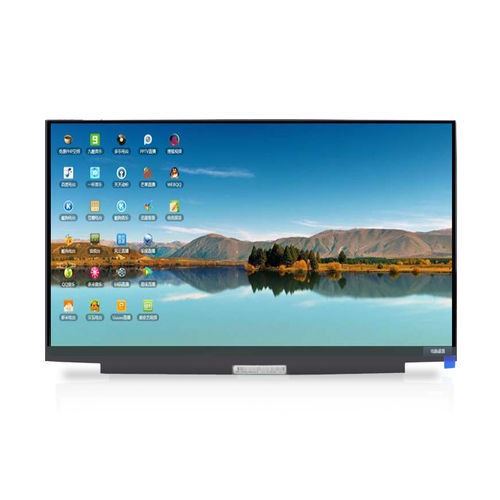

LCD/TFT screen SMI-TFT-0 series

15.6"1920 x 1080industrial

The specification is applied to 15.6” model TFT Liquid Crystal Display.The Product Type is Open Cell and the LED driver for back-light driving is built in this model. The matrix uses a-Si Thin Film Trans istor as a switching device. This TFT LCD has a 15.6 inch diagonally measured active display area with FHD resolution (1920 horizontal by 1080 vertical pixels array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this Open Cell can display 16.7M(6bit+Hi FRC) colors and color gamut 45%. The TFT-LCD panel used for this Open Cell is a low reflection and higher color type. Therefore,this Open Cell is suitable for POS. All input signals are eDP1.2 interface compatible. （1）2 lane eDP interface with 2.7 Gbps link rates （2）16.7M(6bit+Hi FRC) color depth, color gamut 45% （3）Green product (RoHS & Halogen free product （4）On board LED driving circuit （5）Low driving voltage and low power consumption （6） Adjust backlight brightness with PWM mode
