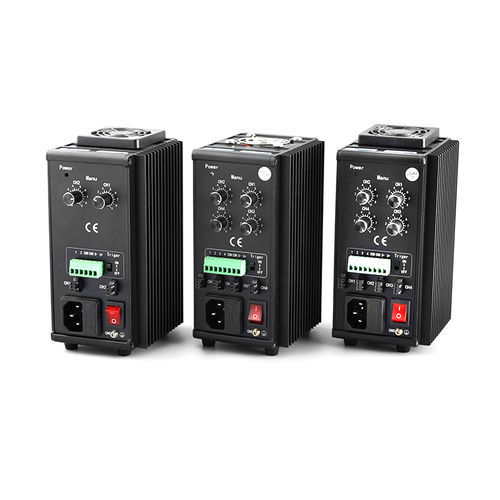

Inspection lighting controller SMI-24V120-4C

This product is a vertical analog four-way controller. The knob adjusts the brightness of the light source steplessly; the external trigger adopts a high-speed optocoupler isolation design, which provides an accurate and high-reliability trigger signal, the external trigger is flexible, and the high and low levels are optional; it has overload and short circuit protection functions; simple operation, with constant on and off State switching function. Mechanical parameters Shell Material: - Steel Plate Shell Color: - Black Dimensions: - 120*110*80(H*L*W) Weight: - 800g Cooling method: - Feel cooling Number of channels: - 4 Input voltage: - 100-240VAC Output voltage: - DC24V Output current: - Four channels simultaneously output total current 5A; single channel maximum current 1.5A Maximum efficiency: - >80% Maximum power consumption: - 120W Dimming parameters Dimming method: - Voltage regulation control Brightness level: - Stepless Manual adjustment: - Adjust the brightness of the light source through the knob on the panel. Trigger parameters External trigger mode: - Positive and negative trigger optional (12 to 24V) External trigger input: - Control the light on and off through high and low level input Trigger delay time: - <1ms External trigger frequency: - ≤1K Hz
