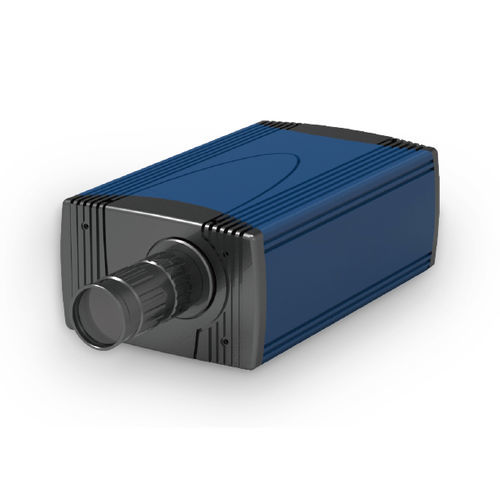

Hyperspectral camera SMI-SC-600C-01

for productionindustrialmachine vision

This series of hyperspectral cameras is a hyperspectral camera with ultra-high resolution, which can be widely used in mounted, portable, indoor and other application scenarios. This product is a visible light, near-infrared push-broom hyperspectral camera, covering the full range of 400-1000 nm. It can be used in field, indoor and other scenarios to quickly and accurately obtain hyperspectral information of the observation target. It is widely used in ecological environment and precision agriculture, industrial testing, resource exploration and other fields. ◆Spectral resolution 1nm ◆HD image resolution ◆More spectral channels ◆ Simultaneous and rapid acquisition of spectral and image information ◆USB3.0 interface, plug and play ◆Domestic, independent intellectual property rights, independent and controllable • Spectral range : 400-1000 nm • Spectral resolution : 1 nm • Lens : 16 mm scientific prime lens, manual focus • Numerical aperture : F/2.8 • Slot size (WxH) : 30 μm* 7 mm • Number of spectral channels : 600 • Number of space channels : 1000 • Effective pixel size : 6.9 μm *6.9μm • Data depth : 12 bits • Max frame rate : 165 fps • Shutter method : Global Shutter • Lens interface : Standard C-Interface • Device interface : USB 3.0 • Operating temperature : 0°C-45°C • Dimension (Width*Height*Depth) : 120 mm *84 mm * 220 mm • Weight (without lens) : <2.0 kg • Power consumption : <3.5 W • Externally powered : Powered through USB3.0
