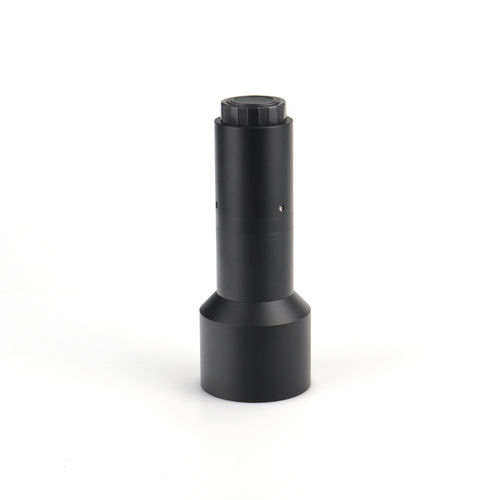

Fixed-focus camera lens SMI-TELE-DF150-01wide-anglezoomtelecentric
Add to favorites
Compare this product
Characteristics
- Type
- fixed-focus, wide-angle, zoom, telecentric, bi-telecentric, line scan, area scan
- Technical applications
- machine vision, for detection, for industrial use, image capture, for measuring, for identification, for 3D measurement, micro defects inspection, for 2D measurement, textile control
- Other characteristics
- high-resolution, megapixel resolution, CCD camera, large-format, high resolution, coaxial design available, image performance uniformity, ultra low distortion
Description
◆Standard C interface, multiple and depth of field can be customized;
◆High definition, high resolution, adjustable aperture;
◆Objective telecentric design, maximum support 2/3 inch 5 million CCD;
◆The multiplier changes from 0.3-8.0X and the field of view is within 29.3-1.1mm.
Lighting type: - Non-coaxial
Magnification: - 0.3X
Object distance: - 150
Depth of field (mm): - 7.4
Telecentricity (%): - <0.1
Optical distortion (%): - <0.1
Resolution: - 0.003
Camera interface: - C mount
Measuring range
1/3CCD (4.8*3.6): - 16*12
1/2CCD (6.4*4.8): - 21.3*16
2/3CCD (8.8*6.6): - 29.3*22
