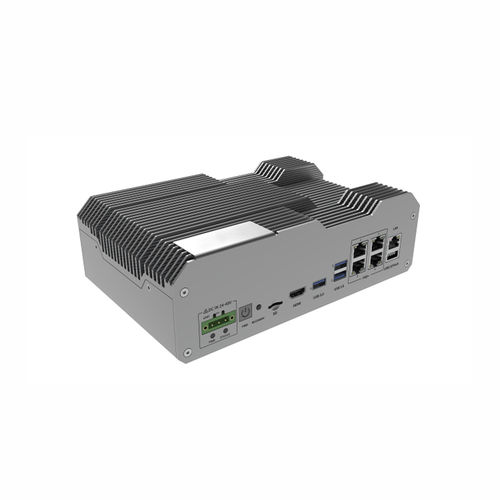

EDGE computer SMI-EIPC-014

boxembeddedNVIDIA® Jetson AGX Xavier™

Product Description It is an embedded edge machine vision platform designed for industrial application. it can effectively dissipate the heat generated by GPU, and guarantee system operation of up to 60°C ambient temperature. It is equipped with various I/O interface, such as PoE+ and isolated DI/DO. In addition, it also features massive expansion port to enhance accessibility. Product Features ◆Direct-contact passive cooling system with high performance ◆IP5X protection ◆-20℃-60℃ operating temperature ◆4*Gigabit PoE+ Port, IEEE 802.3at protocol ◆Various I/O interface and expansion Specification Processor - NVIDIA Jetson AGX Xavier - - Machine vision performance - Up to 32 T OPS - - CPU - 8-core ARM v8.2 64-bit CPU - - GPU - 512-core Volta GPU - - Memory - 32 GB 256-Bit LPDDR41 - - DL Accelerator - 2*NV DLA Engines - - Storage - 32 GB eMMC 5.1 - - Processor - NVIDIA Jetson AGX Xavier - - Video encode - 4*4Kp608*4Kp3016*1080p6032*1080p30(H.265)4*4Kp608*4Kp3014*1080p6030*1080p30(H.264) - - Video decode - 2*8Kp306*4Kp6012*4Kp3026*1080p6052*1080p30(H.265)4*4Kp608*4Kp3016*1080p6032*1080p30(H.264) - - Power supply - - Input type - DC - - Input voltage - Wide input 14-48 V (Optional) 24-48 V for PoE - - Typical consumption - 50 W - - Mechanical - - Dimension (W*H*D) - 226 mm*70 mm*114.5 mm (I/O ports and mounting holes excluded) - - Weight - 2.3 Kg - - Environmental - - Operating temperature - -20C-60C, 0.2-0.3m/s air flow² - - Storage temperature - -25℃-80℃ - - Storage humidity - 10%-90% non-condensing - - Vibration - 5gn, 10Hz-150Hz, 3 Axis³ - - Protection - IP5X - - ESD - Touch 4 KV, Air 8 KV - - TVS - 500 V
