Belt conveyor STACK
inclinedhandlingloading

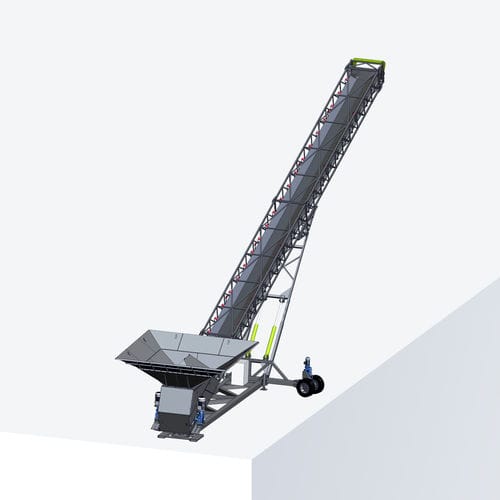

Belt conveyor - STACK - SmartTEH - inclined / handling / loading

Belt conveyor - STACK - SmartTEH - inclined / handling / loading - image - 2

Belt conveyor - STACK - SmartTEH - inclined / handling / loading - image - 3

Belt conveyor - STACK - SmartTEH - inclined / handling / loading - image - 4

Belt conveyor - STACK - SmartTEH - inclined / handling / loading - image - 5

Belt conveyor - STACK - SmartTEH - inclined / handling / loading - image - 6

Add to favorites

Compare this product

Go to the SmartTEH website for more information

Characteristics

Technology: belt
Form: inclined
Function: handling, loading
Construction: telescopic, mobile
Sector: for logistics

Description

The SmartTEH Mobile Conveyor with Wheels is designed for bulk cargo handling, and adaptable for loading onto ships or warehouses. It can handle various materials like pellets, grains, chips, and coal. The conveyor is customizable, with features like hydraulic height adjustment, telescopic boom, radial chassis movement, all-wheel drive, and bunkers of different sizes. It also includes dust aspiration equipment and remote control for efficient and environmentally friendly operations in logistics, wood processing, and manufacturing industries. SPECIFICATIONS: Max productivity: up to 1000 m3/h Conveyor Type / Length: Mobile tape roller/ 26m ST 26M Conveyor working height: 4 – 10 m Length of belt: 52 m Belt width: 1000 m Belt type: EP1000 4/3+1.5 (Shevron) Loading width: 1000 mm Main drive type: Motor gearbox 2x 15 kW Bunker size: 15m3 Application: Grain, woodchip, granules, and other
