Mobile unloading system HOP

for hopperfor grainbulk

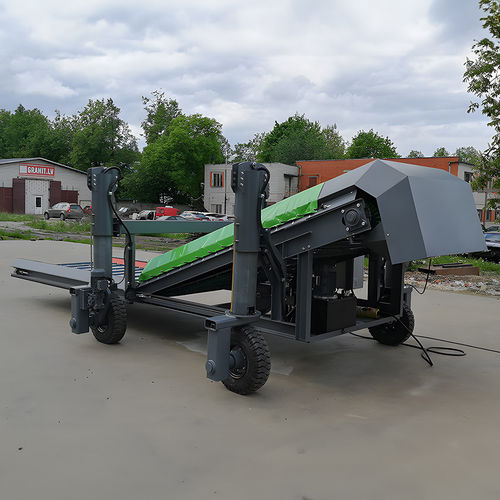

The SmartTEH Mobile Conveyor with Wheels is designed for bulk cargo handling, and adaptable for loading onto ships or warehouses. It can handle various materials like pellets, grains, chips, and coal. The conveyor is customizable, with features like hydraulic height adjustment, telescopic boom, radial chassis movement, all-wheel drive, and bunkers of different sizes. It also includes dust aspiration equipment and remote control for efficient and environmentally friendly operations in logistics, wood processing, and manufacturing industries. HOW IT WORKS: - With the help of specially designed belt-type conveyors the bulk material is handled in a very gentle way.​ - Equipment is placed on a wheeled chassis and is equipped with a stationary control cabinet and/or radio remote control. ​ - With electrically powered drive, wheels provide machines entry under and exit from the wagon’s bottom.​ - Four hydraulic cylinders provide adjusting (push down/lift) the height of the equipment to the height of the railway.​ - The speed of the belt is adjustable by the operator with a remote control. SPECIFICATION (for Transporters under the wagon (3pcs)​): - Length: 9510 mm. - Width: 8343 mm. - Productivity: Up to 500 m³/h. - Main Belt Width: 1800 mm. - Working Temperature: -20 to +30 °C. - Motor Reducer (Big Conveyor): 5.5 kW x 3. - Hidrostation: 7.5 kW. - Wheel Drive: 2 x 0.55 kW. - Drive Pulley Diameter: 220 mm. - Tensioning Pulley Diameter: 90 mm. - End Conveyor Belt Width: 1200 mm. - End Conveyor Drive: 3 kW. - Tensioning Size: 350 mm. - Unloading Height: 600 mm.
