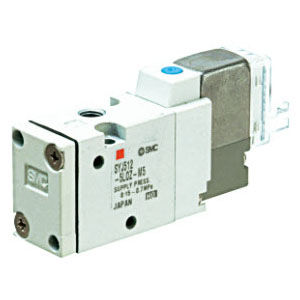

Solenoid-operated pneumatic directional control valve SYJ300
air-operatedmanual3-way

solenoid-operated pneumatic directional control valve
solenoid-operated pneumatic directional control valve
solenoid-operated pneumatic directional control valve
Add to favorites
Compare this product


Characteristics

Actuating method
air-operated, solenoid-operated, manual
Ports/positions
3-way
Operating pressure

Min.: 150,000 Pa
(22 psi)

Max.: 700,000 Pa
(102 psi)

Description

The SYJ Valve is an innovative combination of space efficiency and performance superiority which provides real value to the design solution. Whether designed in a manifold or used as a single valve, this small profile increases design flexibility and minimizes space requirements. The SYJ valve utilizes a low power (0.5 watts standard) pilot solenoid design, which dramatically reduces thermal heat generation. This improves performance, decreases operating costs, and allows for direct control by PLC output relays. All electrical connections for SYJ Valves are available with lights and surge suppression. SYJ series valves can be configured on base mounted manifolds, or individually on sub-plates, creating a variety of solutions to meet your broadest engineering needs. •Ambient and fluid temperature: -10 to 50° C (no freezing) •Maximum operating frequency: 10Hz

Catalogs

SYJ300
SYJ300
60 Pages
