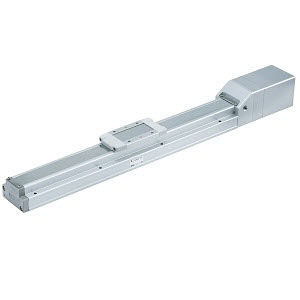

Ball screw actuator LEFSlinearelectricwith servo-motor
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- ball screw, lead screw, with servo-motor
- Motor
- DC
- Voltage
- 24-volt
- Norms
- ISO
- Other characteristics
- precision, slide, for heavy loads
- Stroke
Max.: 1,000 mm
(39.37 in)Min.: 50 mm
(1.969 in)- Bore
16 mm, 25 mm, 32 mm, 40 mm
(0.63 in, 0.98 in, 1.26 in, 1.57 in)- Motor power
22 W, 38 W, 50 W, 100 W
(0.03 hp, 0.05 hp, 0.07 hp, 0.14 hp)- Speed
1.2 m/s
(3.94 ft/s)- Ambient temperature
Max.: 40 °C
(104 °F)Min.: 5 °C
(41 °F)- Repeatability
0.02 mm
(0.0008 in)
Description
The original LEFS slider features an inline motor with a cover. Because the motor drives the ballscrew directly, additional cost of a belt and pulley system is avoided. The motor cover is taller than the load platform, so be aware of potential interference at the origin position.
•Maximum work load: 60 kg
•Motor types: high load step motor or high speed servo motor
Catalogs
LER series
62 Pages
