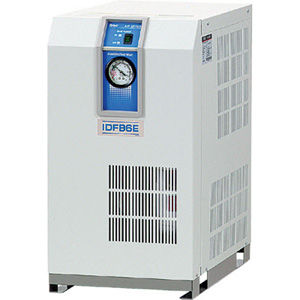

Refrigerated compressed air dryer IDFB*E seriestwo-stage
Add to favorites
Compare this product
Characteristics
- Technology
- refrigerated
- Number of stages
- two-stage
- Capacity
Min.: 17 m³/h
(600.35 ft³/h)Max.: 510 m³/h
(18,010.48 ft³/h)- Working pressure
100 psi
- Ambient temperature
Min.: 2 °C
(35.6 °F)Max.: 40 °C
(104 °F)- Weight
Min.: 18 kg
(39.7 lb)Max.: 123 kg
(271.2 lb)- Dew point
Min.: 2.8 °C
(37 °F)Max.: 10 °C
(50 °F)
Description
Series IDFB*E refrigerted air dryers are suitable for use in aftercooled systems with compressors up to ~100 hp (depending on dew point desired). These durable units have simple control systems and are easily serviced.
•UL certified for use in North America
•60 Hz operation
•Max. inlet air temperature: 122°F (50°C)
•Max. flow at rated conditions: 300 scfm 510m³/hr (ANR) @37°F (3°C) PDP
•Connections: NPT threads are standard; R/Rc adapters are available
