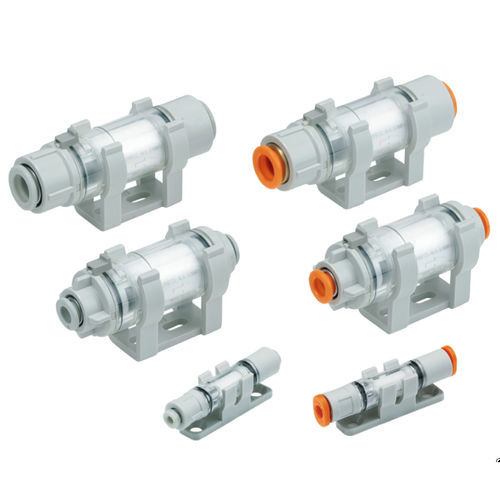

Air filter ZFC seriesbasketvacuumindustrial
Add to favorites
Compare this product
Characteristics
- Designed for
- for air
- Filtration element
- basket
- Filtration method
- vacuum
- Applications
- industrial
- Material
- polycarbonate
- Other characteristics
- in-line, transparent
- Operating pressure
1,000,000 Pa
(145.038 psi)- Filtration size
Max.: 10 µm
Min.: 5 µm
- Flow
Max.: 100 l/min
(26.417 us gal/min)Min.: 2 l/min
(0.528 us gal/min)- Fluid temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)
Description
・Operating pressure range: −100 kPa to 1.0 MPa Both positive pressure and vacuum pressure can be used with one unit.
・With lock mechanism During positive pressure, it prevents components from being scattered when they are loosened.
・2 types of transparent case materials are available:
Polycarbonate (Standard), Nylon (Made to order)
