Plug valve XL series
pneumatically-operatedfor controlfor gas

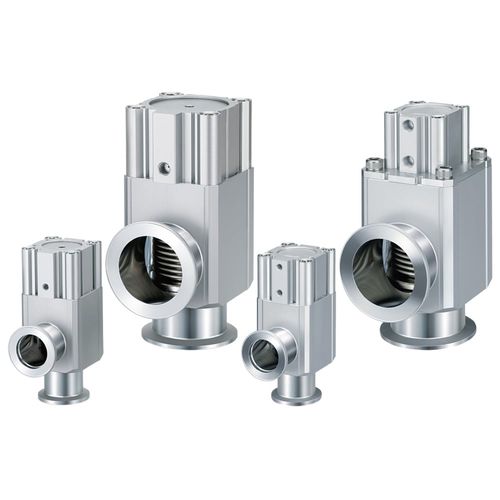

Plug valve - XL series - SMC PNEUMATIC - pneumatically-operated / for control / for gas
Plug valve - XL series - SMC PNEUMATIC - pneumatically-operated / for control / for gas
Plug valve - XL series - SMC PNEUMATIC - pneumatically-operated / for control / for gas - image - 2
Add to favorites
Compare this product


Characteristics

Type
plug
Operation
pneumatically-operated
Function
for control
Media
for gas
Body
right-angle, aluminum
Applications
high-vacuum
DN

Max.: 160 mm
(6.299 in)

Min.: 16 mm
(0.63 in)

Pressure

Max.: 600,000 Pa
(87 psi)

Min.: 300,000 Pa
(43.5 psi)

Temperature

Max.: 150 °C
(302 °F)

Min.: 5 °C
(41 °F)

Flow rate

Max.: 200 l/s
(52.83 us gal/s)

Min.: 5 l/s
(1.32 us gal/s)

Description

・Aluminum bodied 　Uniform baking temperature 　Lightweight, Compact 　Minimal outgassing 　Minimal contamination from heavy metals ・Bellows are replaceable.
