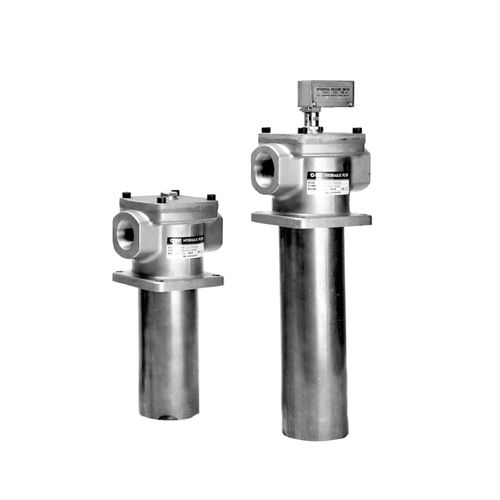

Hydraulic filter FHBA seriesoilbasketpressure
Add to favorites
Compare this product
Characteristics
- Designed for
- hydraulic, oil
- Filtration element
- basket
- Filtration method
- pressure
- Applications
- industrial
- Material
- aluminum
- Other characteristics
- return-line, vertical
- Operating pressure
1.6 MPa
- Filtration size
Min.: 5 µm
Max.: 20 µm
- Flow
Min.: 150 l/min
(39.626 us gal/min)Max.: 400 l/min
(105.669 us gal/min)- Fluid temperature
80 °C
(176 °F)
Description
・Vertical return filters are designed for mounting directly on top of oil tanks used in hydraulic systems. They prevent the dust generated within the circuit from entering the tank and help keep the oil clean. This efficient configuration reduces the total number of filters required.
・It is possible to detect clogging with the differential pressure indicator and differential pressure indication switch (CB-□□H).
Catalogs
No catalogs are available for this product.
See all of SMC PNEUMATIC‘s catalogs
