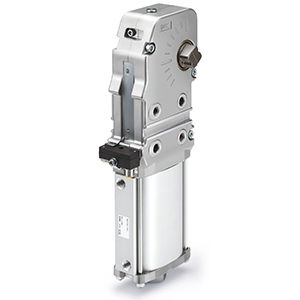

Clamping cylinder CKZ5Tpneumaticdouble-actingrobust
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Configuration
- double-acting
- Protection class
- robust
- Applications
- clamping
- Bore
50 mm, 60 mm
(1.97 in, 2.36 in)- Pressure
Min.: 0.3 MPa
Max.: 0.9 MPa
- Force
Min.: 0 N
Max.: 4,000 N
- Torque
800 Nm, 1,500 Nm
(590.05 ft.lb, 1,106.343 ft.lb)- Ambient temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)- Fluid temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)
Description
Power Clamp Cylinder – CKZ5T
Designed to clamp anywhere
Minimise the required space – Just 343 mm of length and 131.2 mm of width (Ø 63)
Reduce the moment of intertia in your robot arm – As low as 3.3 kg (Ø 63)
Rely on it – Clamping force up to 4000 N.
And much more
Bore sizes (mm): 50, 63
Spatter-proof construction
9 types of arm opening angles available: 15°, 30°, 45°, 60°, 75°, 90°, 105°, 120°, 135°
Turck and P&F proximity sensors available.
