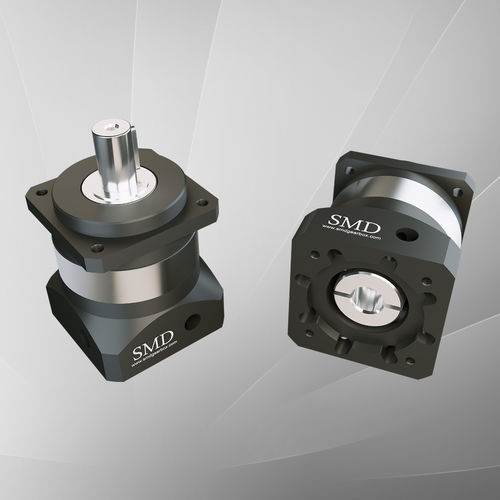

Planetary gearbox SNP seriescoaxial200 - 500 Nm100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 50 - 100 Nm, 20 - 50 Nm, 10 - 20 Nm
- Applications
- shaft
- Other characteristics
- aluminum
- Rotational speed
3,000 rpm
(18,849.56 rad.min-1)
Description
PLANETARY GEARBOX WITH SHAFT END
Product Description
Nominal Output Torque : 12Nm to 530Nm
Backlash: Less than 1 Arc-min.
Available reduction ratios from 1:3 to 1:100.
Design to use with various servomotors.
Sealed shut design; self-lubricated and easy to install
High torque capacity and low inertia.
Features
Shaft-style Output face. Output housing is Aluminum.
Suitable for Combination with any kind of motors.
Total enclosed design. Easy installing and combination.
High rating torque and low inertia.
The design of long shaft is suitable to driven by rack and simplify the mechanism.
Please contact SMD for 3 stage ratios.
For 1000 times max during life of gearhead.
For input speeds above 3000 rpm, please consult us, with application details.
At permissible input speed and Nominal Output Torque.
