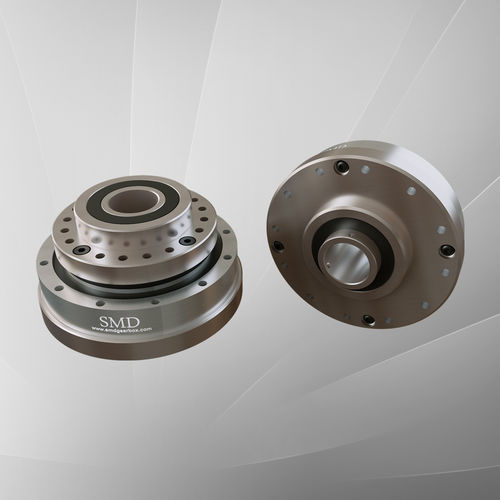

Cycloidal gearbox SSHG series

100 - 200 Nm50 - 100 Nm20 - 50 Nm

HARMONIC GEARBOX WITH HOLLOW SHAFT END Product Description Diverse appearance; suitable for robot arm. Precision: less than 0.4 Arc-min. Torque Capacity: 20Nm to 180Nm Available reduction ratios 1:50 ,1:80, 1:100, 1:120 Short axial dimension. High rigidity for stable precision work. More compact and higher accurate. Applied in robot industry, especially for multi-axis robot joints. For 1000 Times max during life of gearhead At permissible input speed and Continuous Output Torque At input speed of 1000 rpm Efficiency = 85% at permissible input speed and full load Permissible axial load or permissible radial load is the value that satisfies the reducer life when either a pure radial load or an axial load is applied to the flange face. (When radial load is Lr+R=0mm, and axial load is La=0mm)
