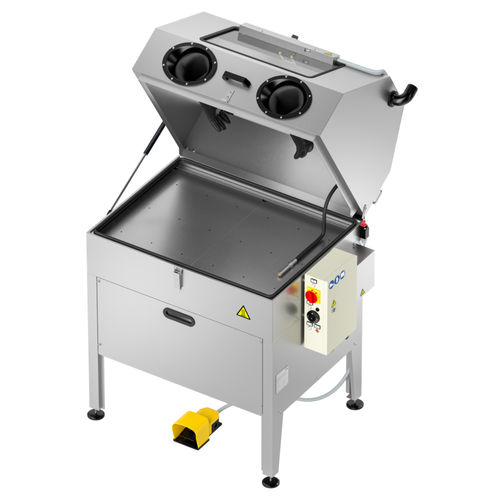

Spraying parts washer LAVAPEN C

manual

This system performs the successful washing of small and medium sized mechanical parts. Washing is carried out manually with two gloves in the front part. The appropriate washing results are ensured by the pump and a special spray-nozzle. In this configuration (C), the machine is fed by single-phase current. It is then possible to heat the washing liquid up to 60 °C, and to wash parts with an adjustable pressurised pump up to 8 bar. version C (pressure 8 bar, heating up to 60°C) Controls Electromechanical Tank quantity Unique tank Areas of application Car/motorcycle maintenance Truck maintenance Railway, naval, aeronautical maintenance Mould washing Mechanical engineering, chip removal, foundries, moulding Aeronautical / Space Industry Electronic Printing and colour industry supply voltage Compressed air (pneumatic version) 230V 1PH+N+PE 50HZ (and more on demand) LAVAPEN parts washer makes possible the manual parts washing inside a closed and wholly safe cabin. Operators locate parts inside the machine, close the cover and put his arms in the gloves then press the pedal to make the spraying pump work. A non-slip hand grip spray nozzle allows operators to wash thoroughly all parts holes and those parts difficult to reach. 3 different sizes of machines and types of cleaning are available: fully pneumatic for the use of strongly aggressive products (P version) electric supply for water-based liquid heating to 60 °C with a max washing pressure of 9 bar (C version)
