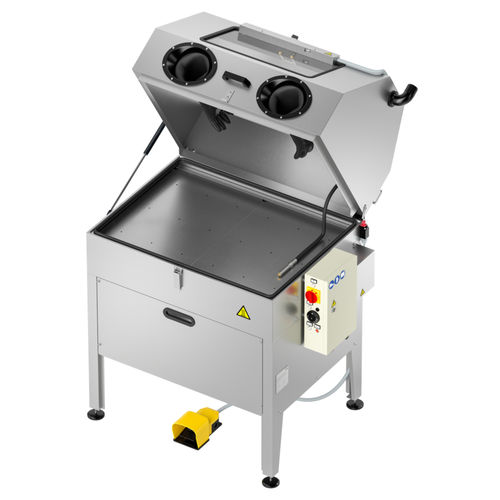

Spraying parts washer LAVAPEN X

manual

This system performs the successful washing of small and medium sized mechanical parts. Washing is carried out manually with two gloves in the front part. The appropriate washing results are ensured by a high pressure pump and a special spray-nozzle. In this configuration (X), the machine is fed by singlephase current. It is then possible to heat the washing liquid up to 60 °C, and to wash parts with an adjustable pressurised pump up to 80 bar. LAVAPEN parts washer makes possible the manual parts washing inside a closed and wholly safe cabin. Operators locate parts inside the machine, close the cover and put his arms in the gloves then press the pedal to make the spraying pump work. A non-slip hand grip spray nozzle allows operators to wash thoroughly all parts holes and those parts difficult to reach. 2 different sizes of machines and 3 types of cleaning are available: fully pneumatic for the use of strongly aggressive products (P version) electric supply for water-based liquid heating to 60 °C with a max washing pressure of 9 bar (C version) electric supply for water-based liquid heating to 60 °C with a max washing pressure up to 80 bar (X version) LAVAPEN parts washers can be equipped on demand with a compressed air blowing gun placed inside. What is included in each LAVAPEN X Hatch closure assisted with gas springs and fastening hook Black latex gloves 660 mm long Tank border gasket
