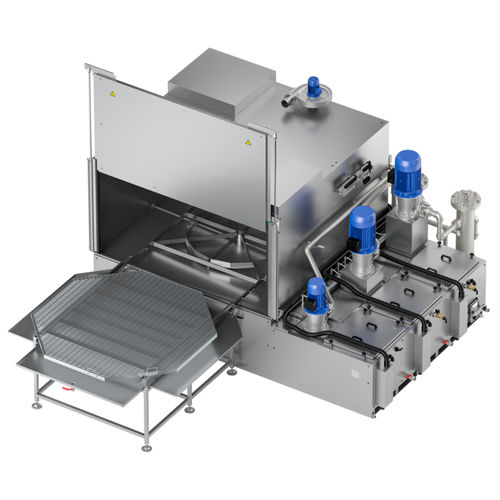

Ultrasonic cleaning machine ROBUR 3B

automaticfor the aeronautical industryparts

Robur performs the successful automatic washing of medium and large size mechanical parts. Washing is carried out by the action of upper, lower and side nozzles. The slow rotation of the platform is ensured by a gear motor with a torque limiter. A PLC management enables numberless customisations thanks to a wide range of accessories. In this configuration, parts washers have three separate tanks to carry out one washing and two rinsings, or two washings (with different detergents) and one rinsing. Robur 2B (two tanks) parts washers are accurately designed for washing and rinsing of very heavy medium and big-sized parts. Parts loading in Robur 2B is carried out by placing the parts on an external trolley located in front of the machine. Operators insert the platform into the washing cabin, then close the vertical door and start the washing cycle. A Stainless steel pump carries out the washing through the liquid intake from tank and sprays it over the parts while a gear motor slowly turns the platform. Parts rinsing is carried out after washing: during this phase a second pumps starts the rinsing liquid intake from the second tank and sprays it over the parts through specific pipes. The parts washer can be completely designed thanks to many accessories available and customised according to each customer's needs. The operational parameters can be changed and monitored through a touchscreen display installed on the switchboard.
