Health Care Sector: Nursing Homes; Hospital ward
Instruments Solutions: Health Science
Type

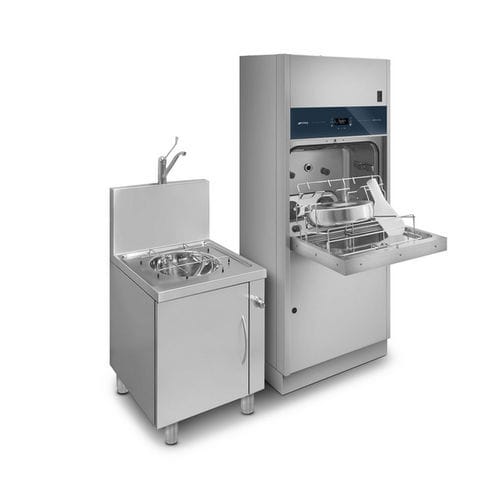

Product Family: Bedpan washers
Type: Bedpan with manual opening
Aesthetics
Control Panel: Soft Touch
Colour: Steel
Led colour: White, Red and Green
Programs
Program editing: Yes (A0 and descaler dosage)
Programs: P1 - short program (urinal bottles), P2 - Medium program (mixed), P3 - Intensive Program, Clostridium, Eco
Options
Printer: Optional, external
Technical Features
HEPA Filter: Optional
Sprayer rotation control: Yes
Emergency opening system: Yes
Door: 1, swing door in stainless steel
Noise level (dbA): <60 dBA
Sky sprinkler: Yes
Dimensions of the product (mm): 1600x600x450
Electrical Connection
Electrical connection: 400V 3N AC 50Hz
60 Hz Possibility: Yes, on demand
Hydraulic connection
Hot water connection with acquastop: Yes
Cold water connection with acquastop: Yes
Interface
Cycle Archive: Yes
Electronic control: Yes
Dowload cycle: Optional, through LAN connection/ Yes, optional thorugh RS232 connection/ Yes, with USB pen drive
Settable print languages: IT (Italiano), EN, DE, ES, FR, PL, PT
Traceability: at least the last 100 executed programs
Display: LCD
Construction
External material of the machine: AISI 304
Washer Chamber Material: AISI 304; AISI 316 as optional
Equipments
Steam Condenser: Yes
Chemicals dosing: Standard for descaler
Detergent peristaltic dosing pump: Optional
Acqua Stop: Yes
Detergent level sensor: Included
