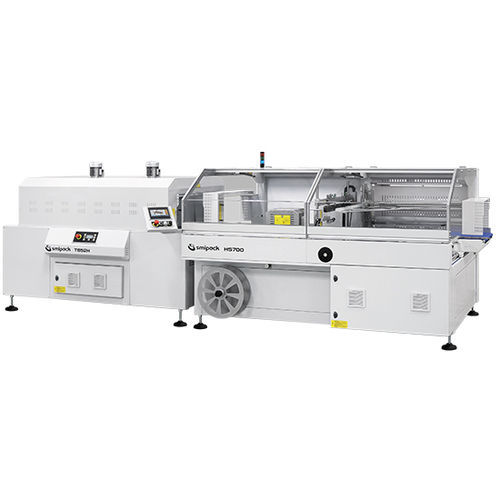

Continuous side-sealer HS700

automaticelectricwith shrink tunnel

The “Full Electric” automatic packers with continuous sealing system from the HS series, designed according to the most advanced concepts of Industry 4.0, are characterized by a great quality/price ratio and modularity. In fact, all the models of this range can be supplied with or without shrink tunnel. The HS series with continuous sealing and intermittent or box motion cycle can handle Polyolefin and Polyethylene, Polypropylene centerfolded or flat film with film folder PX, and is suited to meet outputs of up to 7200 packs/hour and 9000 packs/hour with customized solutions. Characteristics : • Power supply : 220 - 240 / 380 - 415 V 3PH + PE / 3PH + N + PE 50/60 Hz • Installed power : 2700 W • Sealing bar : 700 mm • Maximum pack height : 300 mm • Speed of conveyors : 11 - 45 m/min • Speed up to : 4200 pph ** • Maximum size of film reel : 850 - ø 350 mm • Machine size : 2765 x 2225 mm • h 1605 - 1765 mm • Machine net weight : 950 Kg • Usable Films: Polyolefin and Polyethylene (Polyethylene from 15 to 80 my with option cross bar for Polyethylene) : up to 30 µ Technical data : • Continuous FULL ELECTRIC 4.0 packer with 2 belts • Intermittent working cycle • Cross sealing bar with PTFE-coated sealing blade controlled by Inverter and Encoder • Side sealing system by friction with hot blade • FLXMOD® control system equipped with: • Operator Interface with Panel PC and 7” full-colour touch screen display with PLC user-friendly • Power and control section consisting of: • Inverters for each motor • IN/OUT control modules with 16 digital inputs/outputs • analog inputs control modules • thermocouple-reading control modules
