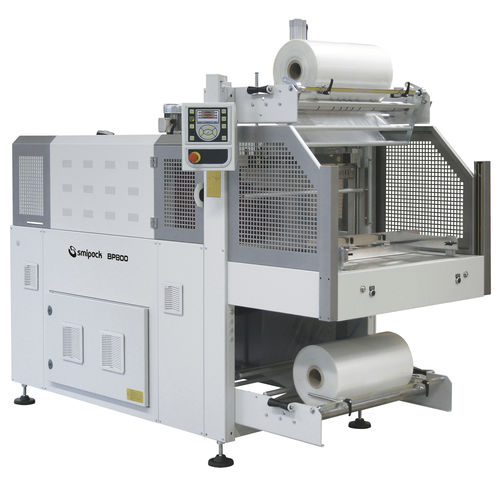

Shrink wrapper with sealing bar BP800

semi-automaticfor textilesfor PET bottles

The BP series of monobloc semi-automatic and automatic shrink wrappers with sealing bar stands out for its versatility. Depending on the model, in fact, this range of packaging machines is particularly suitable for packing a very wide range of products belonging to different market sectors in film only or pad + film. Equipped with 90° or in-line infeed, multi-push system and cutting-edge technology, these machines are perfectly and easily integrated into shrink film packaging lines. The BP Series can reach productions up to 25 packs/minute. Characteristics : • Power supply : 220 - 240 / 380 - 415 V 3PH + PE / 3PH + N + PE 50/60 Hz • Installed power : 17000 W • Air pressure : 6 Bar • Required air : 21 Nl/p* • Product maximum height : 380 mm • Sealing bar : 760 mm • Maximum size of film reel : 750 x Ø 350 mm • Working board height : 945 - 1105 mm • Machine size : h 2105 - 2265 mm • Machine net weight : 605 Kg • Advised film: LDPE : 20 - 100 µ Technical data : • Semi-automatic shrink wrapper • Mono-chamber tunnel • Motorized upper and lower film unwinding • Pneumatic product pusher, activated by two buttons • Included: feet for the machine fastening, press rod to stop products, cooling fan at the tunnel outlet • Monoblock frame • Pneumatic sealing bar equipped with safety sensors • Pneumatic film cut by cold blade • Rollers are positioned on the upper and lower unwinders to make the reels easier to load • Metric graduation based film reels centering system • FLXMOD® electronic control system working by means of a 4.3" graphic LCD rotating control panel, equipped with PLC
